Audison AF M1D 1200W | Mono Amplifier | 66755120

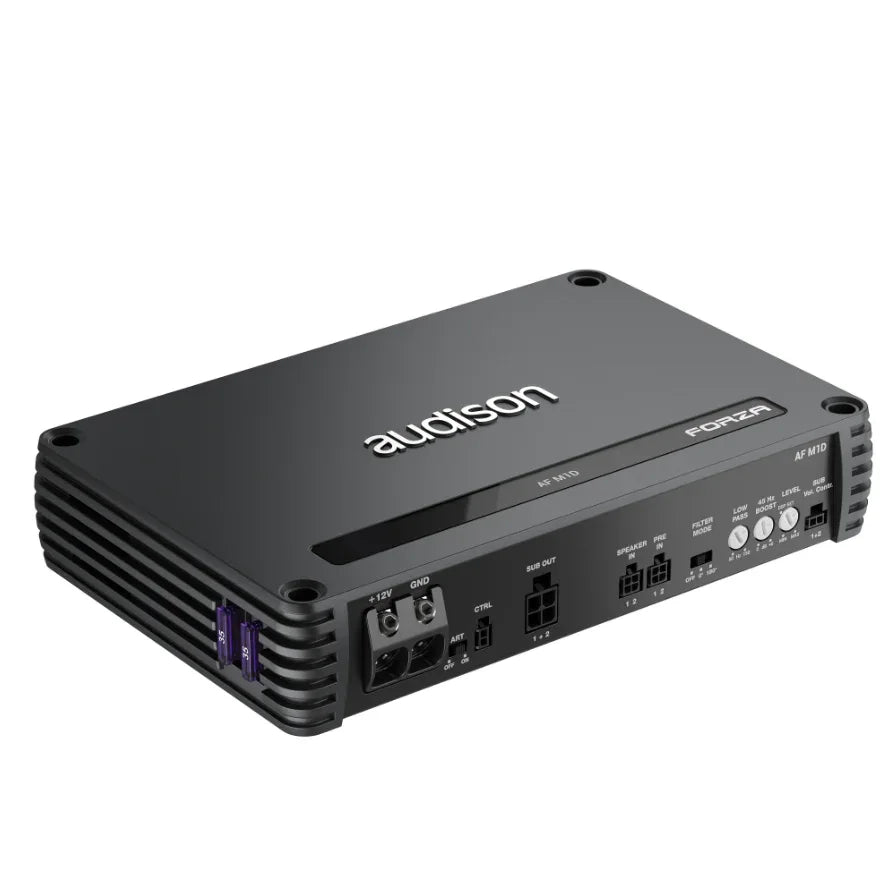

The Audison Forza AF M1D is a high-performance mono amplifier designed for demanding car audio systems, offering 600 W RMS at 4 Ω, 1000 W at 2 Ω and an impressive 1200 W at 1 Ω. With the latest Audison D-Class technology, it delivers efficient, high-quality power in a compact form factor.

Designed as a standalone or companion amplifier in premium car audio systems, the AF M1D features selectable crossover filtering, phase adjustment and bass boost controls. Its Class D architecture utilises high-switching frequencies and steeper analog filters to extend bandwidth, minimise noise and provide excellent integration flexibility with high-level or low-level inputs.

Technical Specifications:

• Channels: 1 (mono)
• Output Power (RMS @ 14.4 V): 600 W @ 4 Ω, 1000 W @ 2 Ω, 1200 W @ 1 Ω
• Class: D-Class
• Min Load Impedance: 1 Ω
• Efficiency: approx. 81%
• Crossover: Adjustable low-pass filter (24 dB/oct) 50-150 Hz, Phase: 0-180°, Bass Boost: +0-6 dB @ 45Hz

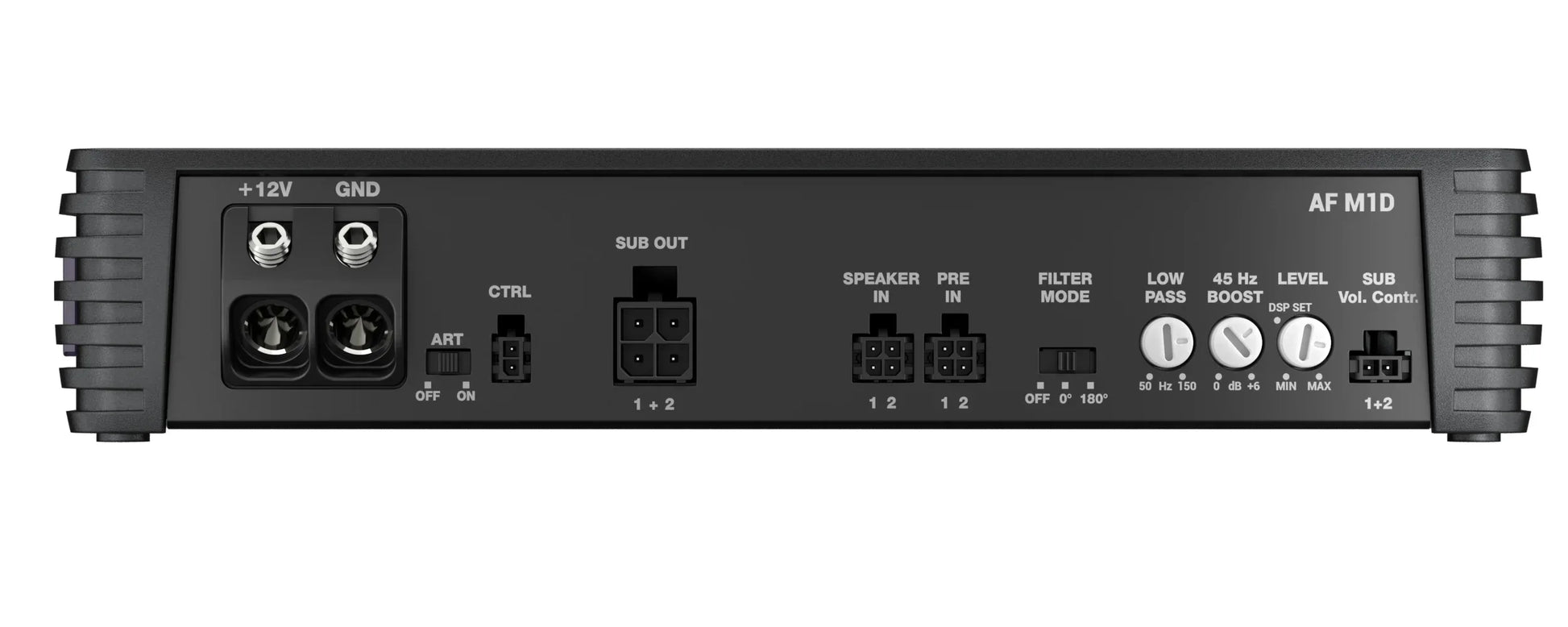

General / Connectivity:

• High-level (Speaker-In) and Low-level (Pre-In) inputs
• ART (Automatic Remote Turn-On from Speaker-In)
• Dimensions: 240 mm × 47 mm × 156 mm
• Weight: approx. 1.95 kg
