HM Series

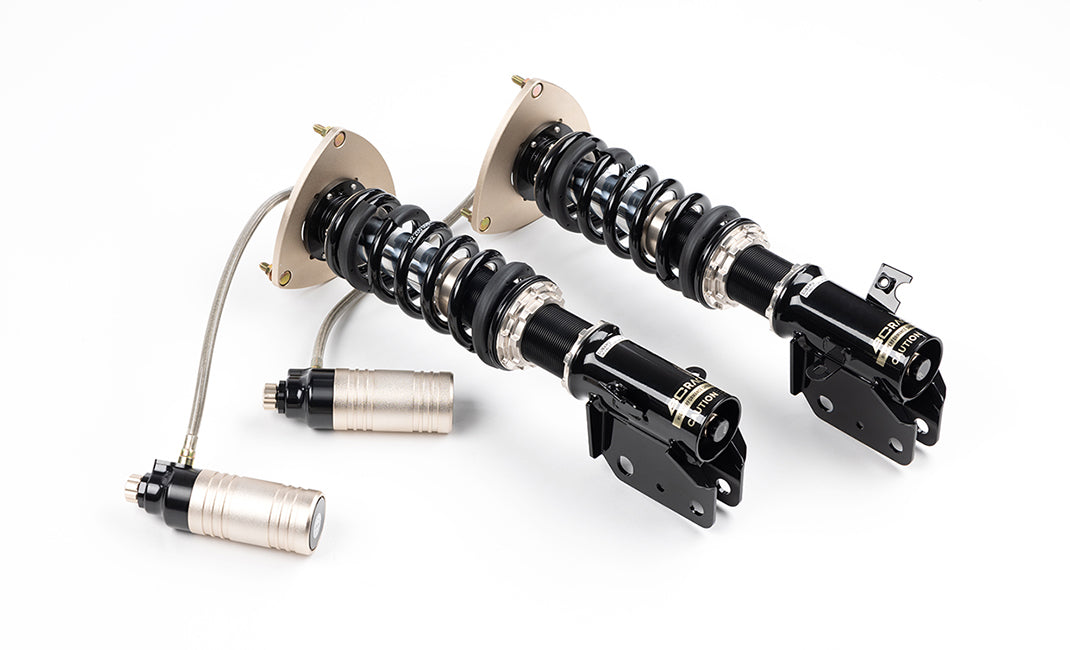

BC Racing's HM Coilover system offers the same great benefits of the RM Series with the addition of 2 way damping adjustment. Each HM Coilover system features inverted mono-tube dampers with independently adjustable compression and rebound. The inverted damper design moves vital damper fluid away from detrimental heat sources to avoid overheating which can cause damper fade under extreme track use. The inverted damper also allows for decreased unsprung weight by moving the majority of the coilover mass up to the chassis improving ride quality, wheel control and steering feel. With the combination of inverted mono-tube dampers and external reservoirs the HM Series is suited for the most demanding users on the track.
Key Features
- Pillowball top mounts
- Digressive piston and damping curve
- Satin chrome finished shock body
- Ride height adjustment separate to spring preload
- Camber adjustable top mounts (depending on model)
- Tapered bottom mount locking collar to prevent collar working loose
- 30 clicks of simultaneous rebound and compression adjustment
- Custom spring rates available
- All spare parts available with low lead times
- Dust boot to protect the damper seal
- Bearing mounted upper spring platform
